How to Show Levels at Each 1 Meter on a Line Using Civil 3D

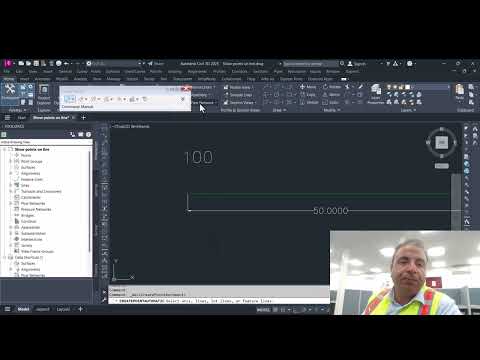

In this video, I answer a question I received on WhatsApp about how to display levels at each 1-meter interval on a line using Civil 3D. The person has a 50-meter line with levels at both ends and wants to show the levels at each 1-meter mark. I demonstrate the process step-by-step, including converting the polyline into a feature line, assigning levels, and inserting levels at 1-meter intervals using the modify feature option. Finally, I use the miscellaneous points option to automatically get points at each 1-meter mark. Watch and learn how to effectively manage and display levels in Civil 3D for precise and detailed project plans.
